We have developed RS-200, RS-300 and RS-400 programs for data acquisition to perfectly support from data acquisition to post processing as well as customized programs in order to
     satisfy their needs and widely used programs in their fields.

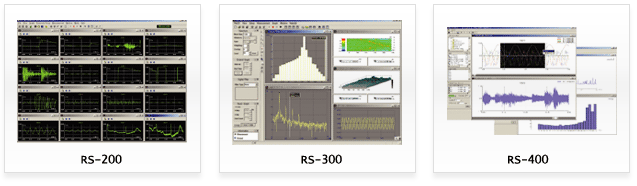

1. RS-200(Multi-channel & Real-time Data Acquisition program)
  This program supports real-time data display and recording up to 256 channels, as well as various data display by using of Analog/Digital meter, Bargraph, etc.

2. RS-300(Real-time Data Acquisition & Frequency Analysis Program)
  This program can help you to easily configure out and analyze for acquisition data, because provided as an option for needed program and modulated such as Real-time FFT, Octave analysis, Impact analysis, Digital filter, Order tracking, and so on.

3. RS-400(Post-processing program for acquired data calculation & analysis)
  This program makes it possible to perform simulation and operation of post-processing to reporting for acquired data from data acquisition system or data recorder.

4. Customized program Development & Supply
  If you want to other program except above program, we can provide customized program with the highest quality in your applying fields.

1. small size (160?20?0mm, 400g) and easily configuration with Notebook.

2. Unlike current data acquisition device, there is no need driver to setup & configure with Host PC. Compare with other products, ours is easier to operate by using RS-Series Program and support remote control program through the Ethernet.

3. Integrated system (built-in Amplifier, Filter, AD, DA, DSP)
  - Built-in filter & amp per channel
  - 24bit, 51.2KHz, ADC, DAC per channel
  - DSP with 100MIPS speed per channel (5EA : Real time processing)
  - Supports 4 channels synchronous sampling up to 51.2 KHz with LAN Interface of high-speed
  - Each input channel for rotating machinery and external trigger.

4. We can perfectly and quickly support customer for problem of usage and maintenance with developed program & system by ourselves.

5. You can purchase price competitive products at low cost.

* Analog Input : Microphone, Accelerometer, Impact hammer, Force, Pressure, Temperature, Displacement, Electric charge, Etc.
* Analog Output : Speaker, Shaker, Etc.
* Pulse Input : Tachometer, Encoder, Etc.

PPD has already HPF and LPF as an analog filter.
It has a character of High Pass Filter(HPF) with 4Hz -3dB/oct and Low pass filter(LPF) is designed to built-in ADC chip to prevent anti-aliasing. In addition you can apply real-time signal processing based on various Digital filter algorism using DSP.

First, you have to setup for DSP development configuration. It means you already possess Compiler and Emulator for DSP. Because PPD data communicate using RS-232 serial port, you need Hardware Debugging through Emulator like as XDS-510PP. If you don't need Hardware Debugging, you can only purchase compiler to download for DSP program.

As a reference book with related DSP, you can apply adjustable code using C and Assembly by considering program size and related data process. To performance of operation speed, current program is applied by inline-assem. In addition RECTUSON has already modularized these kinds of DSP programs as an option. Using this module, you can easily apply digital filter program for Application and real-time frequency analysis for firmware.

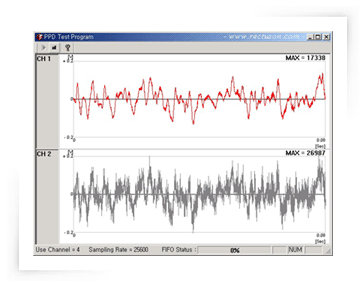

Above picture is an example for the result of filter process within DSP. Like this processing, you can reduce load for Personal Computer through the improvement of operation process by using download program into DSP chip.

PPD has a fixed IP address using LAN Interface. that is, it has already programmed IP address by using firmware program. You can freely control PPD through the Log-In(ID and Password) using Internet remote control program by RECTUSON.

First, you have to check IP Address setup in Host PC. You had better refer to the chap 7 Trouble shooting in PPD Hardware Manual.
