▶ System connection method
※ Depending on the type of sensor, such as the following 3 ways you can configure the system.

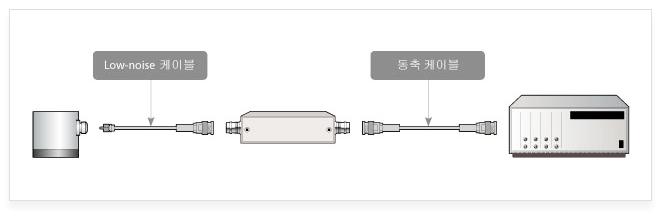

Amplifier external type
- Resonant, Broadband, Industrial sensors (A204SW) connection configuration.
Because sensor's output signal level is very low, AE signals amplified by preamplifier or as a filter to remove unwanted signals.
If you are connected to sensors and preamplifier Low-noise cable must be used.

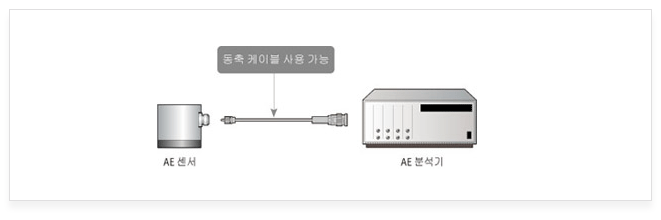

Amplifier interior type- Industrial Sensor (1045SWA) connection configuration
This sensor can use the coaxial cable. AE analyzer sensor driving power must check.

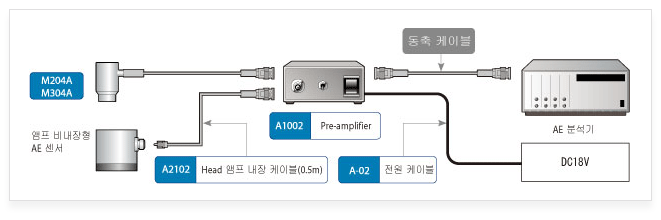

R-CAST AE sensor connection configuration
The system use the only preamplifier as AE detection method of high-sensitivity, low-sensitivity.
