  • Multi-channel real-time data acquisition program
    RS-200
  • - Support real time AE features
  • - Various display such as cumulation, distribution, trend of AE
      feature
  • - Management of threshold and data acquisition using Level,
      Pre-trigger
  • - Various monitoring such as system leakage, crack, AE origination
  • - Source location and editor of signal occurrence log
  • - Monitoring of preamplifier working status
  • - Auto reporting function through windows configuration
  • - Export function to support analysis result

Products Information

RS-200 is a real-time data analysis software for a data acquisition device. This program can display and record data up to Max 92 channels in real-time perfectly, and it also offers varied displays such as Time view, Digital view, Analog/Digital meter and Bar graph.

It is possible to record the lossless data from the specified sampling frequency on a data acquisition device.
User can select one of various file formats to record data without using Export function. That is, besides binary recoding, user can choose a file format that he wants for saved data among Wave, Text, Excel, Matlab etc. You can see graphic waveforms for the recorded data in the display mode, and edit them for making and printing a report.

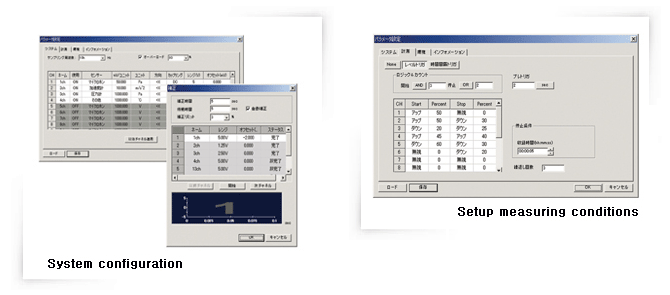

Feature and composition

Setup measuring conditions
Channel setupSampling FrequencyDepends on the specification of a data acquisition device
OverloadTo support efficient data acquisition, it allows user to setup the range of overload for input signals.
V/Unit(Sensitivity)Input sensitivities for your sensors or conversion values form user definite unit and input voltage
CalibrationAutomatical zero offset calibration for an input signal
Measurement condition setupRecording timeRefer to a recording media, inputted by user.
Level triggerSetting up start and stop conditions (repeat times, and/or functions)
Trigger voltage level to input signal Pre-/post-trigger range (time or the number of datum), external trigger condition, repeat times.
Time interval triggerSetting up waiting time, recording time, time interval, repeat times.
ConfigurationMeasurements Date, location, tester informations, temperature, humidity, etc.
Files File name, location, new folder creation, etc.
Available file type
- binary, Text, MS Excel(CSV), Wave, Matlab, Universal, SDF file types, etc.

You can save the contents of the channel & measurement condition setup as a file, and then open them in a program. You can add some functions such as Trigger, TTL pulse input, Analog output according to H/W Spec.
* To satisfy customer's needs, we can freely modify & customize this program under any condition.

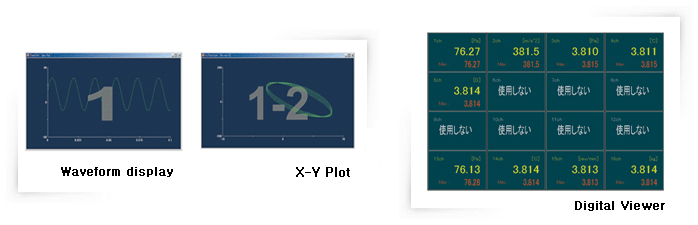

Data displays

RS-200 helps you to easily analyze various inputted signals from A/D converters by using waveform, X-Y plot, orbit plot, analog/digital meter, bar graph. Display window allows user to create and change it in real-time, while measuring data by using graph menu and toolbar.

Waveform plotDisplaying time series data from acquisition device
X-Y plotDisplaying 2 channels on one plot with coordinate of X and Y origins
Orbit plotDisplaying an orbit plot of a rotor
Digital viewer Displaying all levels of the input signals as digit numbers
Analog/digital meterShowing Max/Min values for the input signals.
Bar dyplayDisplaying all levels of the input signals as bar graphs
support overload display.
Display Mode

Display mode shows users recorded data and allows to save as image or data file. Users can easily print out recordedd data by using self-reporting and file conversion(MS Excel and Word)functions.
This program can replay the recorded data as sound and save it as a wave file.
Print out current screen with selecting window, full-screen, editing size and margins. Additionally various functions are available.

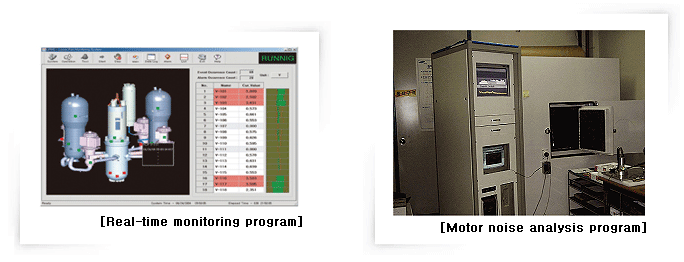

Application Programs

This program Monitors sound signals from inside or any location of a pipe in real-time, detects shock pulse by means of trigger.

Suitable verification program for a sample product such as motors by measuring its sound level.
