  • Sound & Vibration Factor Analysis
    RS-500
  • - More than one channel tracking positioning system for impulse
      signal.
  • - Position analysis by mode separation, circular-crossing triangular
      method.
  • - FFT spectrum analysis function.
  • - Impulse signal sound play function.
  • - Presumption of mass by the function of mass characteristic FR, FC.
  • - The function of mass presumption using by using Metal Sphere
      Signal Map.
  • - The function of Digital filter analysis.
  • - Displaying function for the cause of 2D, 3D sound.
  • - The function of report preparation and display output.

Products Information

RS-500 program can be utilized to measure and analyse the cause of sound as well as the cause of impulse by the speed of variation of electric waves, and through this program user can make presumption to locate more than one channel impulse signal. And it is possible for users to track down the precise epicenter of sound through triangular positioning method of impulse signal of more than 3channels and circulatory-crossing method. In order to eliminate background noise, digital filtering function is included and to analyse impulsewaves FFT spectrum and 3-D analytical function are supported.

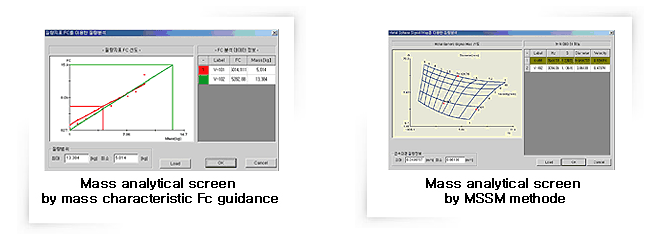

It enables users to transform each input channel's mass of characteristic figure into DB(Data Base) by using impact hammer and also user can make presumption of the mass of impulse signal. It is also possible to presume mass by methods of mass character FR, FC, MSSM, and displays the analytical result on 2-D, 3-D screen.

Feature and composition

Location analysis of impulse factor

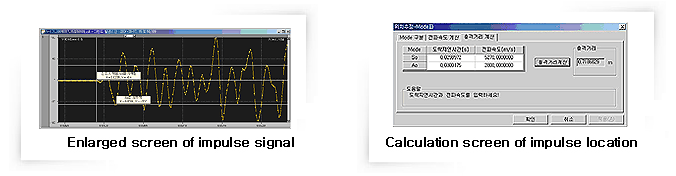

It displays impulse signal on screen produced by the creation of trigger condition, etc. If user click location analysis button after fixing starting point of longitudinal wave and transverse wave by a cursor value, it displaysthe calculated location of impulse signal on screen. Background noise removing function is included by fixing Low pass, High pass, Band pass filter. The locational information of sensors which mounted to analyze impulsesignal can be displayed on screen. It displays the location of impulse factor on the screen in the basis of eachsensors' figure of punctual coordinates.

Mass analysis of impulse factor

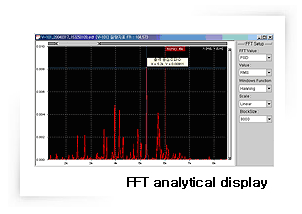

If user execute FFT analysis after fixing the definition of impulse signal and using pop up menu, the result will pop up on screento the left, and than it will automatically calculate the core impulse frequency. User can calculate figure below by using FFT fixation window.

■ The calculation of the spectrum, power spectrum and power
    spectrum density.
■ Peak, RMS, P-P value calculation.
■ Window function application.
■ Block size fixation box.
