  • Compact data recorder

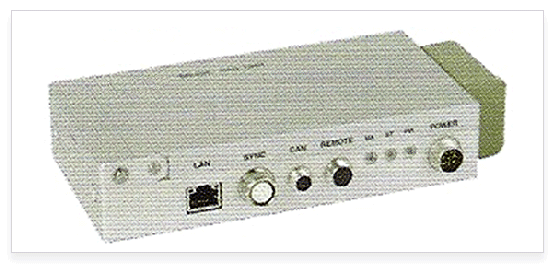

    PPD V
  • Modular input by signals
  • CAN input port
  • Save data simultaneously on CF memory and PC
  • Durability of environment, impulse, vibration (no fan)
  • Variety of system configurations (separation module
        installation)
  • Max 256 channel data save (per Unit)
  • Real-time frequency analysis, etc application support
  • Small size: 170(W)x36.5(H)x85(D) (Body)

Product Information

Available to separation install, the small recorder, PPD V is innovative new products.
Recorder body and module can use by integration or separation (within 10m), in case of the strain can use to max 256channel.
In using 50 channels by transfer speed 1MB/sec, you can save data simultaneously to sampling of each channel 10 kHz. In simultaneously saving transfer speed is 500KB/sec on CF memory/PC. You can received the signal using the dynamic strain, DC voltage, IEPE sensor, pressure, displacement, acceleration, noise, temperature, rotation , CAN output amplifier module. RECTUSON's HR-12 Series amplifier module and cable is still available.
PPD V has following properties; Temperature -10~+60 Durability of impulse 100G/5msec, Durability of vibration 10G/30~200Hz Not a fan, it is suitable for vehicle-mounted at dusty environment and unpaved road driving.Using the condition setup program, input signal can be monitoring as real-time, and using RS-300(option) real-time analysis and rotation properties can be analyzed.

Input Module

Model nameChannel numberInput module
AE-200AD2424ADC input module(5V DC input)
AR-60TC24-K/T/J24CAN output K,T,J Type thermocouple
AR-200ST16A16Strain/DC voltage input module
AR-200PA9A9IEPE Type sensor input module
AR-200FV66Pulse input module

PPDV body can control amplifier module of max 16.
(However when connected module of more than 9, power module, connector box, cable is a separate option.)

Specifications

itemSpecification
Storage mediaCompactFlash memory card/ Save data simultaneously on PC
Input portSensor amplifier module access port x 1, CAN port x 2
OperationBy only remote control offline operation of online operation on PC
When setting save conditions, needs to be connected with PC
Save condition file is saved on the memory card, and by remote control operation modification of save condition and current save conditions can be saved.
Sampling frequency A line: 0.1, 0.2, 0.5, 1, 2, 5, 10, 20, 50, 100, 200, 500, 1k, 2k, 5k, 10k, 20k, 50k, 100k, 200kHz
B line: 12.8, 25.6, 51.2, 128, 256, 512, 1.28k, 2.56k, 5.12k, 12.8k, 25.6k, 51.2k, 128kHz
C line: 3, 30, 300, 3kHz
Common sampling frequency set-up about connected multiple sensor amplifier module
Interface100BASE-TX LAN (PC access)
CAN inputInterface: based CAN ISO 11898 max 1Mbps
Input format: isolation CAN interface x 2Listen/Talk(Ack On/Iff) response
In saving signal, max 256byte/port. Less than 2byte deal with data.
Response to 4byte data
Connection with sensor response module Integrated configuration or separated configuration possibility
In distributed installation, within cable full length 10m
Max connection: 16
(However when connected module of more than 9, power module, connector box, cable is a separate option.)
In each module, power supply to PPD V body
Dimensions/Mass170(W)x36.5(H)x85(D)mm, 510g
(Except for side panel, remote control module, cables, protrusion, etc)
Power12V DC(10V DC-15V DC) Power consumption 7W
Durability of impulse, vibration properties100G 5ms, 10G/30-200Hz
(In using side panel, AR-200 series sensor amplifier module commons specification)
Remote control module
(RC-SR200V)		operation button: ARMED, START, STOP, MARK, BAL, POWER
By connecting with microphone, voice memo is saved on memory card.
PPD V body accessories, cable length 2m, mass with cable 320g
